Hardware

D7702

2-channel 14-bit 125 MS/s Digitizer

CompactPCI / PXI

Stacks Image 4158

Feature Summary

  • 2 channels / 14-bit quantization
    ▪ Variable DDS based sample rate clock up to 125 MHz
    ▪ Sample clock can be disciplined to external 10 MHz reference
    ▪ Ultra-low phase noise
    ▪ Multi-channel sync interface
    ▪ External trigger and 1 PPS inputs
    ▪ DC-coupled input or IF input (21.4 MHz or 70 MHz)
    ▪ Integrated DSP
    ▪ Pulse detection and processing modes
    ▪ VITA 49.0 Radio Transport (VRT) sample data encapsulation

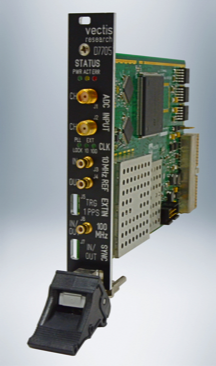

D7705

2-channel 14-bit 250 MS/s Digitizer

CompactPCI / PXI

Stacks Image 4232

Feature Summary

  • 2 channels / 14-bit quantization
    ▪ Variable DDS based sample rate clock up to 250 MHz
    ▪ Sample clock can be disciplined to external 10 MHz reference
    ▪ Ultra-low phase noise
    ▪ Multi-channel sync interface
    ▪ External trigger and 1 PPS inputs
    ▪ DC-coupled input or 160 MHz IF input
    ▪ Integrated DSP
    ▪ Pulse detection and processing modes
    ▪ VITA 49.0 Radio Transport (VRT) sample data encapsulation

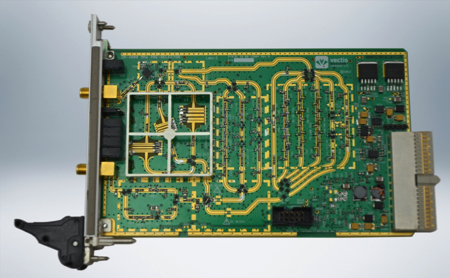

P7600

20 – 3000 MHz RF Preselector

CompactPCI / PXI

Stacks Image 4306

Feature Summary

  • Ultra fast frequency set-on
  • 11 channel sub-octave filters
  • continuously tunable filters 100–1000 MHz
  • bypass channel
  • Front end variable gain (0–15 dB, or 0–30 dB)
  • Switchable low-noise preamplifier channel
  • Very low power

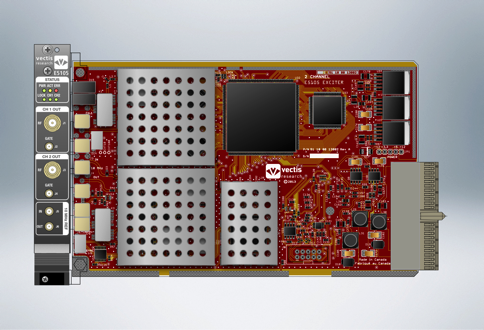

E5105

2-Channel 20 – 3000 MHz RF Exciter

CompactPCI / PXI

Stacks Image 1320

Feature Summary

  • Ultra fast frequency set-on
  • Frequency hopping modes
  • AM/FM/PM carrier modulation
  • Input and output gating
  • Variable gain outputs
